Amazon Ads Conversion Export Integration

Amazon Ads Conversion API (CAPI) enables advertisers to send conversion events and customer actions directly from Treasure Data to Amazon Advertising for attribution and measurement purposes. This server-to-server integration bypasses browser limitations and provides more reliable conversion tracking.

The Amazon Ads Conversion Export integration supports Treasure Data users in sending conversion events with enhanced privacy compliance and improved attribution accuracy for Amazon DSP and Sponsored Ads campaigns.

• Basic knowledge of Treasure Data
• Basic knowledge of Amazon Ads campaign management and conversion tracking
• Access to Amazon Ads account with conversion API permissions
• Understanding of conversion events and attribution models

• At least one customer identifier must be provided per event
• Maximum batch size: 500 events per request
• Events should be sent as close to real-time as possible for optimal attribution
• PII fields must be normalized and SHA-256 hashed according to Amazon's requirements; non-PII identifiers follow Amazon's field-specific requirements

If your security policy requires IP whitelisting, you must add Treasure Data's IP addresses to your allowlist to ensure a successful connection.

Please find the complete list of static IP addresses, organized by region, at the following document

In Treasure Data, you must create and configure the data connection before running your query. As part of the data connection, you provide authentication to access the integration.

Your first step is to create a new authentication with a set of credentials.

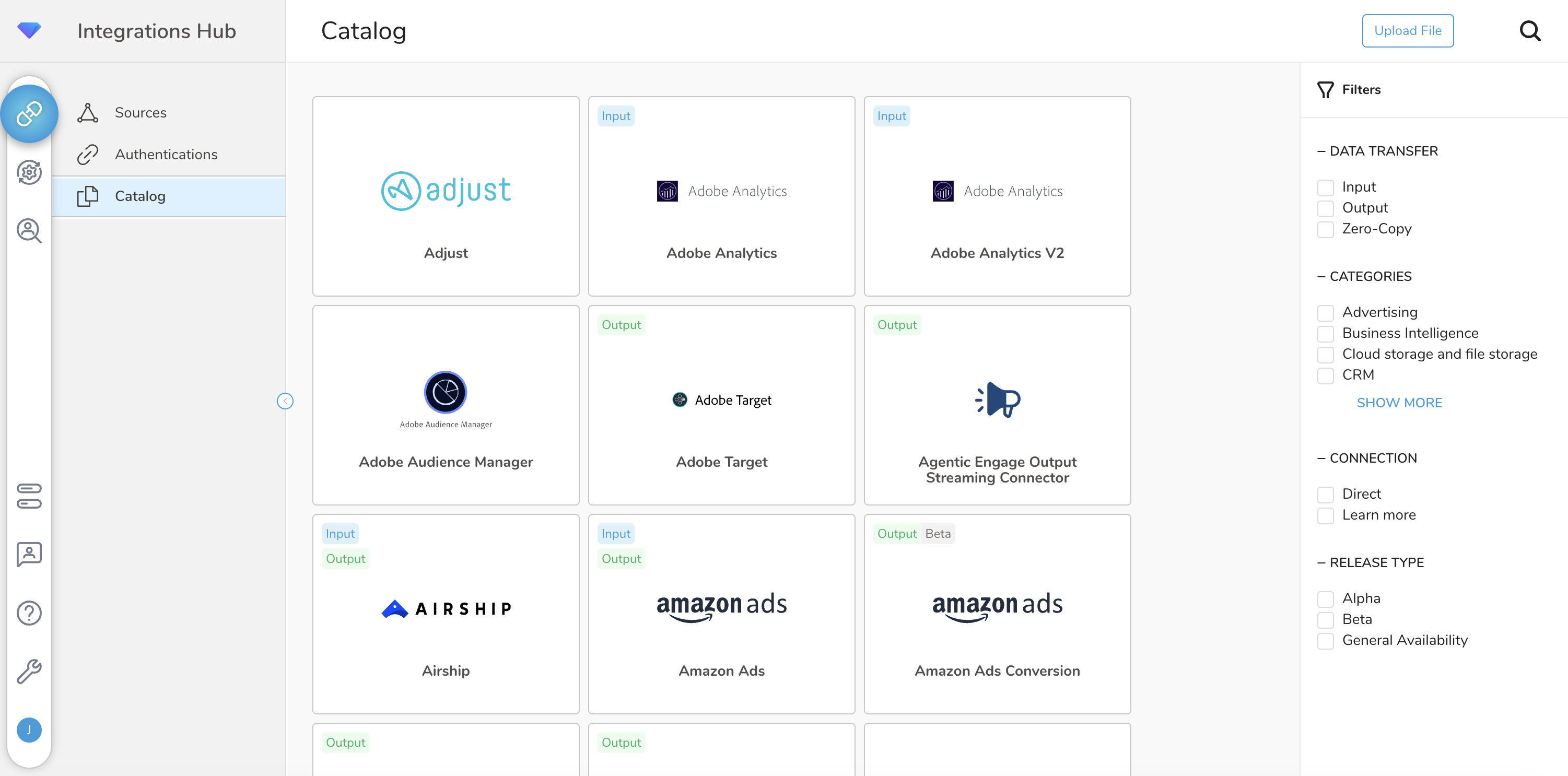

1. Select Integrations Hub.
2. Select Catalog.

3. Search for Amazon Ads Conversion in the Catalog; hover your mouse over the icon and select Create Authentication.

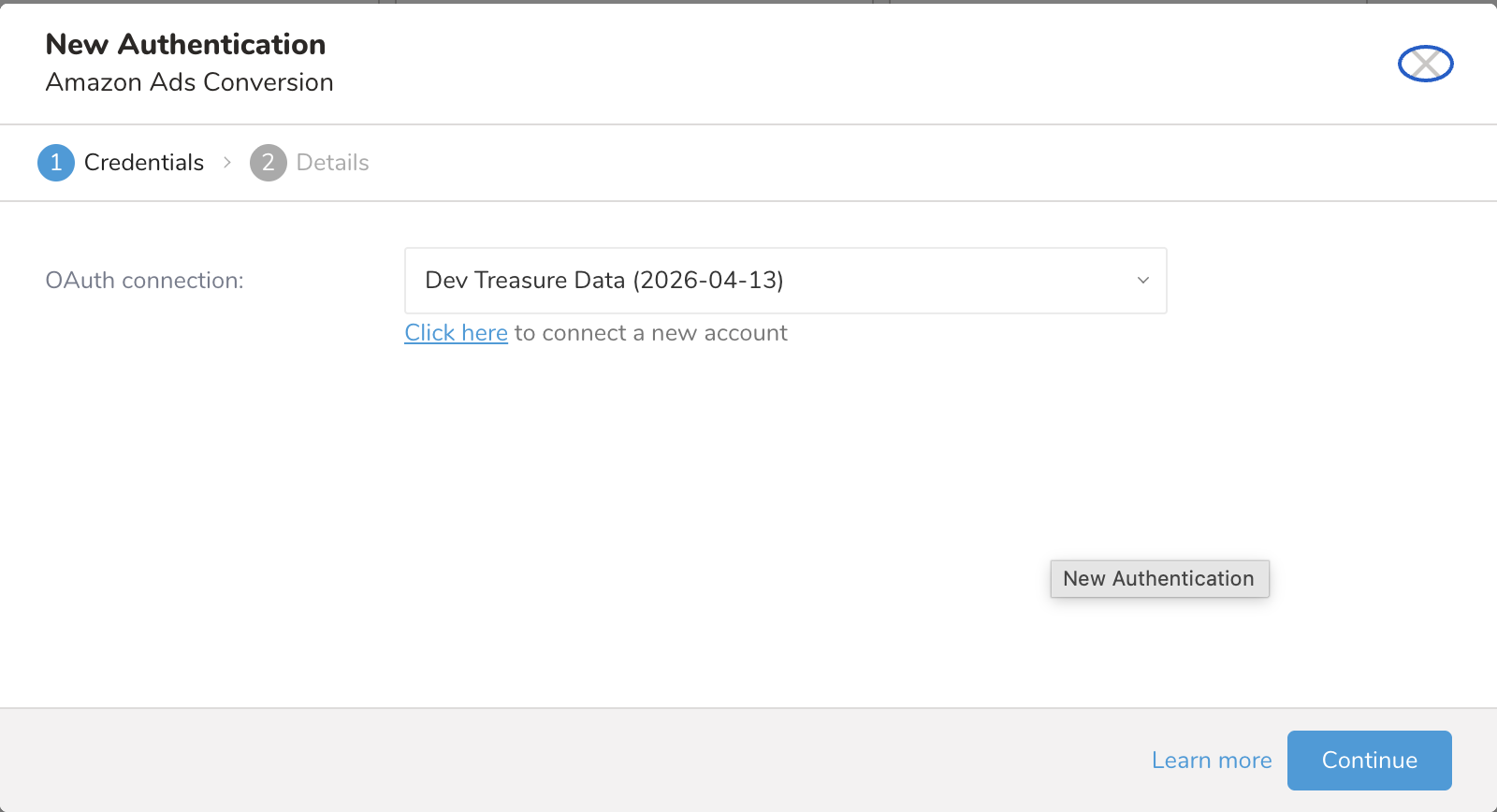

The New Authentication modal displays.

4. Below the OAuth connection field, select the Click here link.
5. Log in to your Amazon account to approve OAuth access.
6. On the New Authentication modal, provide this information and select Continue.
7. Enter a name for the authentication, and select Done.

If you want to use this authentication with Treasure APIs or with the TD Toolbelt, you will need to get its Authentication ID.

To get the Authentication ID:

1. Navigate to Integrations Hub > Authentications.
2. Select the integration you want to use. The Edit Authentication modal displays.
3. In the browser address bar, at the end of the URL, note the Authentication ID.

1. Navigate to Data Workbench > Queries.
2. Select New Query.
3. From the table drop-down menu, select the database you want to query.
4. Enter your query.

Here is a sample query:

SELECT
  'Product Purchase'                AS event_name,              -- required
  'OFF_AMAZON_PURCHASES'            AS conversion_type,         -- required
  'WEBSITE'                         AS event_source,            -- required
  'US'                              AS country_code,            -- required
  purchase_time                     AS event_time,              -- required
  customer_email                    AS email,                   -- conditional (hashed)
  customer_phone                    AS phone,                   -- conditional (hashed)
  customer_first_name               AS first_name,              -- conditional (hashed)
  customer_last_name                AS last_name,               -- conditional (hashed)
  quantity                          AS units_sold,              -- conditional
  purchase_value                    AS value,                   -- optional
  'USD'                             AS currency_code,           -- optional
  order_id                          AS event_id,                -- optional
  product_category                  AS custom_field_1,          -- optional custom data
  customer_segment                  AS custom_field_2           -- optional custom data
FROM
  conversion_events
WHERE
  TD_INTERVAL(purchase_time, '-1d', 'JST')

Here are the required and conditional fields for the query:

Configure the conversion export settings to send events to Amazon Ads.

1. Using the Treasure Console, perform steps 1-4 from the "Define your Query" section above.
2. Select Export Results.
3. Select the integration you created for Amazon Ads Conversion.

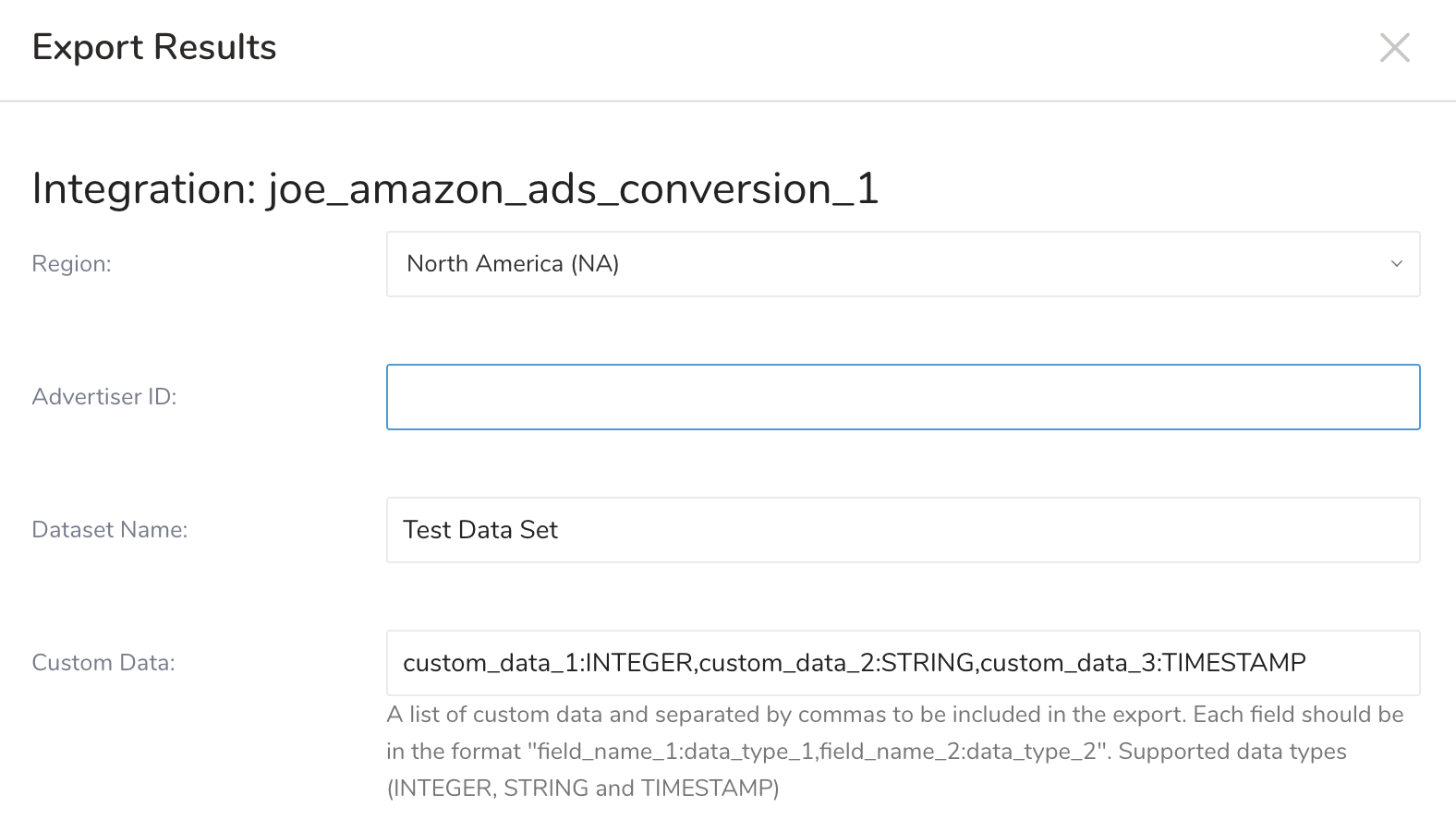

The Export Results modal displays.

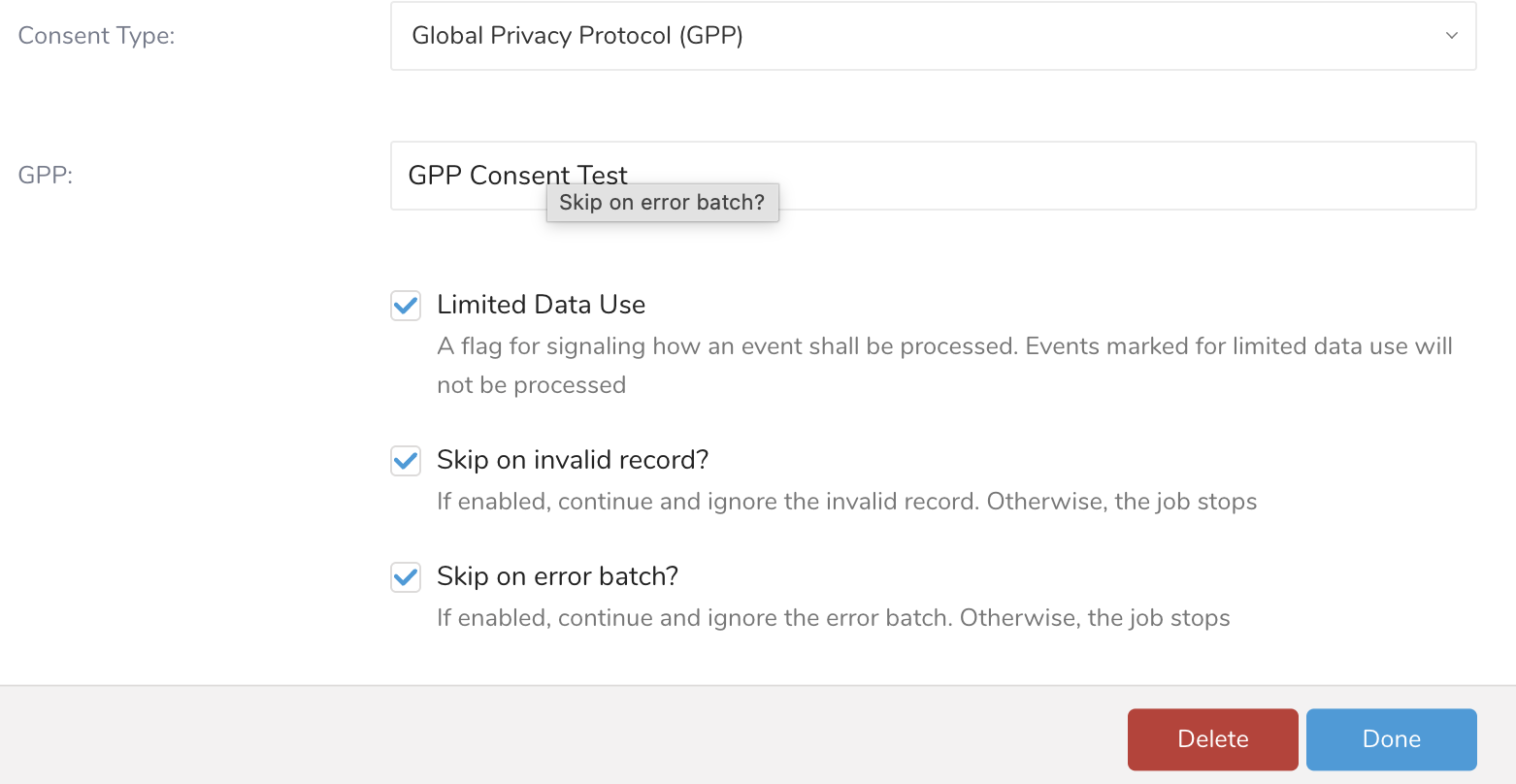

4. Enter your information into the fields:

5. Select Done.

************* REPORT *************
2026-04-14 04:34:30.320 +0000 [INFO] (0017:task-0000): ************* REPORT *************
2026-04-14 04:34:30.320 +0000 [INFO] (0017:task-0000): Total records: 1, total skip records: 0, total batches: 1, total skip batches: 0

You can use Scheduled Jobs with Result Export to periodically write the output result to a target destination that you specify.

Treasure Data's scheduler feature supports periodic query execution to achieve high availability.

When two specifications provide conflicting schedule specifications, the specification requesting to execute more often is followed while the other schedule specification is ignored.

For example, if the cron schedule is '0 0 1 * 1', then the 'day of month' specification and 'day of week' are discordant because the former specification requires it to run every first day of each month at midnight (00:00), while the latter specification requires it to run every Monday at midnight (00:00). The latter specification is followed.

1. Navigate to Data Workbench > Queries

2. Create a new query or select an existing query.

3. Next to Schedule, select None.

4. In the drop-down, select one of the following schedule options:

   Drop-down Value	Description
   Custom cron...	Review Custom cron... details.
   @daily (midnight)	Run once a day at midnight (00:00 am) in the specified time zone.
   @hourly (:00)	Run every hour at 00 minutes.
   None	No schedule.

 *    *    *    *    *
 -    -    -    -    -
 |    |    |    |    |
 |    |    |    |    +----- day of week (0 - 6) (Sunday=0)
 |    |    |    +---------- month (1 - 12)
 |    |    +--------------- day of month (1 - 31)
 |    +-------------------- hour (0 - 23)
 +------------------------- min (0 - 59)

The following named entries can be used:

• Day of Week: sun, mon, tue, wed, thu, fri, sat.
• Month: jan, feb, mar, apr, may, jun, jul, aug, sep, oct, nov, dec.

A single space is required between each field. The values for each field can be composed of:

1. (Optional) You can delay the start time of a query by enabling the Delay execution.

Save the query with a name and run, or just run the query. Upon successful completion of the query, the query result is automatically exported to the specified destination.

(Optional) You can delay the start time of a query by enabling the Delay execution.

Within Treasure Workflow, you can specify the use of this integration to export conversion data.

_export:
  td:
    database: td.database

+ amazon_ads_conversion_export_task:
  td>: export_conversions.sql
  database: ${td.database}
  result_connection: amazon_ads_conversion_auth
  result_settings:
    type: amazon_ads_conversion
    td_authentication_id: td_authentication_id
    region: NA
    advertiser_id: advertiser_id
    dataset_name: conversion_dataset
    custom_data: product_category:STRING,customer_segment:INTEGER
    consent_type: ACS
    amzn_ad_storage: GRANTED
    amzn_user_data: GRANTED
    limited_data_use: false
    skip_invalid_record: true
    skip_error_batch: false

You can also use the TD Toolbelt to export conversion events to Amazon Ads using the td query command with the --result option.

The data specified with the --result option is in JSON format:

{
  "type": "amazon_ads_conversion",
  "td_authentication_id": "${authentication_id_from_td_console}",
  "region": "NA",
  "advertiser_id": "your_advertiser_id",
  "dataset_name": "conversion_dataset",
  "custom_data": "product_category:STRING,customer_segment:INTEGER",
  "consent_type": "ACS",
  "amzn_ad_storage": "GRANTED",
  "amzn_user_data": "GRANTED",
  "limited_data_use": false,
  "skip_invalid_record": true,
  "skip_error_batch": false
}

Manual export:

td query \
--database ${database_name} \
--wait "SELECT * FROM ${conversion_table}" \
--type presto \
--result '{"type":"amazon_ads_conversion","td_authentication_id":"${auth_id}","region":"NA","advertiser_id":"${advertiser_id}","dataset_name":"conversions","skip_invalid_record":true}'

Scheduled export:

td sched:create \
conversions_to_amazon_ads '0 2 * * *' \
--database ${database_name} 'SELECT * FROM ${conversion_table}' \
--result '{"type":"amazon_ads_conversion","td_authentication_id":"${auth_id}","region":"NA","advertiser_id":"${advertiser_id}"}'

• Authentication errors: Verify OAuth permissions include conversion API access
• Data validation errors: Ensure all required fields are present and at least one customer identifier is provided
• Hash format errors: Customer PII must be properly normalized and SHA-256 hashed following Amazon's guidelines
• Rate limiting: Amazon enforces API rate limits; implement appropriate delays between batch uploads
• Missing customer identifiers: At least one of email, phone, or other PII fields must be provided per event
